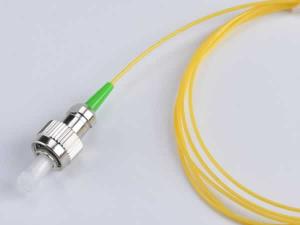

3-10G 1100nm-1650nm InGaAs Coaxial Pigtail Pin Photo Diode
The 3-10g 1100nm-1650nm ingaas coaxial pigtail pin photo diode employs a small, coaxial package and InGaAs detector chip. It has the features of little power consumption, small dark current, low return loss, good flexibility, great linearity, compact design, small volume, high reliability, and long use life. This series of product is most commonly used in the CATV receiver, optical signal receiver of analog system, and power detector.
(Click here to know the detailed information. PDF )
Optical & Electrical Characteristics| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Wavelength Range | λ | 1100 | - | 1650 | nm | - |
| Power Range | P | -70 | - | +6 | dBm | 5V |
| Active Diameter | Ad | 25 | 80 | um | - | |
| Dark Current | Id | - | 0.2 | 0.5 | nA | 5V |
| Responsivity | R | - | 0.85 | 0.90 | A/W | λ=1310 nm |
| 0.90 | 0.95 | λ=1550 nm | ||||
| Frequency Bandwidth | Bw | 1 | 10000 | MHz | ||
| Frequency Response | Fr | - | ±0.5 | - | dB | |
| Capacitance | Ct | - | 0.5 | 0.65 | Pf | - |
| Response Time | Tr | 0.1 | - | ns | - | |
| CSO | - | - | -70 | - | dBc | |
| CTB | - | - | -80 | - | dBc |
We are a professional 3-10g 1100nm-1650nm ingaas coaxial pigtail pin photo diode manufacturer and supplier in China. We also provide Pin TIA receiver, SLED superluminescent LED butterfly pigtailed laser module, 2.5G 1625nm DFB pigtail diode laser 1mw, and more.
