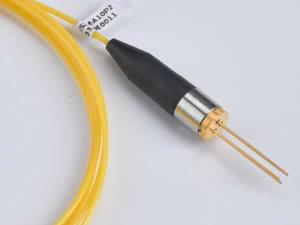

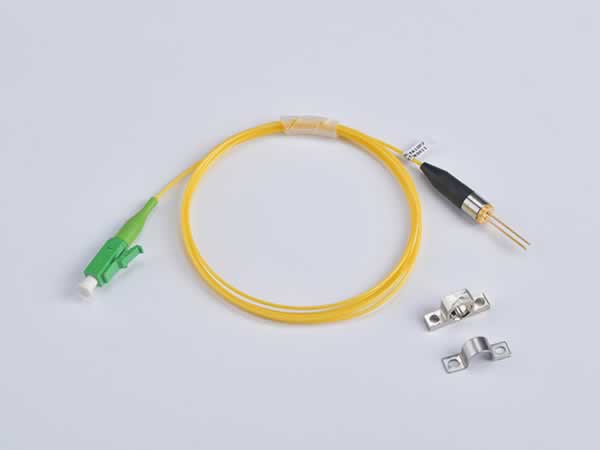

FP Fiber Coupled Laser Diode Driver1-4mw

The FP fiber coupled laser diode driver1-4mw is a semiconductor light-emitting device that employs Fabry-Perot optical resonant cavity so that multi-longitudinal-mode operation can be achieved to produce coherent lights. This series of product has the advantages of large output power, small beam divergence, narrow spectrum, and high modulation rate. It is quite suitable for long-distance communication applications.

This series of diode driver delivers small threshold value, low operating current, and single-mode fiber-optic output. In addition, the equipment is fitted with a built-in isolator and monitor photodiode, featuring highly stable power output. It can be applied to CATV workstation, CATV return-path transmission system, short-distance forward transmission system, GSM or CDMA transmission system, and other analog systems.

1310nm 1MW-4MW FP Laser Diode Receptacle

(If customers would like to know more about the details, please click here to download the following PDF file.)

Optical & Electrical Characteristics
Parameter Symbol Min. Typ. Max. Unit Test Condition
Rated Power Po 0.2 - 4 mW Ith+20mA
Threshold Current Ith 5 - 12 mA CW
Forward Voltage Drop Vop - 1.0 1.5 V CW, Ith+20mA
Cent Wavelength λc 1300 1310 1320 nm -20dB
1540 1550 1560
Spectrum Width(-3dB) Δλ - 2 3 nm Ith+20mA
Bandwidth Bw - 2.5 GHz -
Monitor Current Im 100 900 uA CW, Ith+20mA
Dark Current of Monitor Id - - 100 nA 5V
Relative Intensity Noise RIN - -150 - dB/Hz CW, 25℃
RF Bandpass Flatness BF ±1.5 dB If=Iop,45MHz-1200MHz
Third-order Distortion IMD3 - 53 dBc 2 tone test,
Optical Isolation ISO 30 40 - dB 25℃

1550nm 1MW-4MW FP Laser Diode Receptacle

(If customers would like to know more about the details, please click here to download the following PDF file.)

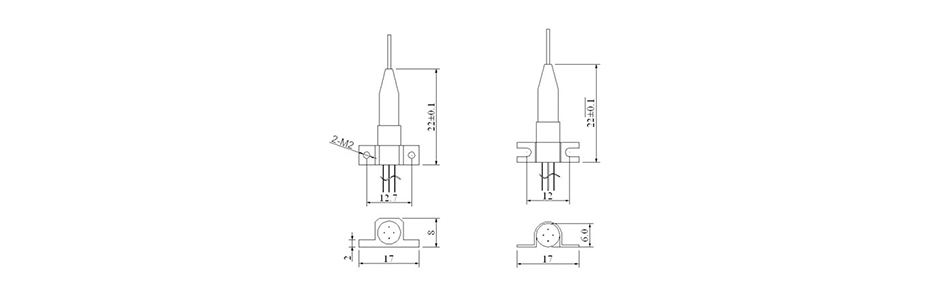

Package Outline

Our company is a specialized FP fiber coupled laser diode driver1-4mw manufacturer in China. We offer a vast range of products, including DFB pigtailed laser diode device, 3-10g 1100nm-1650nm ingaas coaxial pigtail pin photo diode, butterfly fiber coupled laser diodes, etc.

Related Names
Fiber Coupled Laser Source | Fabry Perot Laser | Fabry-Perot Resonator
