Features
1. The 405nm-980nm red visible light laser diode modules adopt the Fabry-Perot laser diode chip. It has the features of high power output as well as low threshold and operating current.
2. The equipment can be supplied with single longitudinal mode or multi-longitudinal mode. It is able to emit light at several wavelengths from 405nm to 1064nm with an output power ranging between 1MW and 1000MW. A built-in monitoring photodiode is also available.
3. Multiple varieties of optical fibers are available, such as the PM, 4μm single-mode, 9μm single-mode, 62.5μm multi-mode, or 105μm multi-mode optical fiber.
4. The equipment is provided in a 6.5mm or 9mm coaxial pigtail package.
5. High power output may result in machine overheating. In that case, a cooler is required during operation.
6. This series of red visible laser diode modules can be used in the temperature feedback system, vibration sensing, gas detection, distance measurement, water resource monitoring, exploration, oil industry, and mining industry.

• 405nm
• 445nm
• 635nm
• 650nm

405nm Pigtailed Components

(If customers would like to know more about the details, please click here to download the following PDF file.)

Optical & Electrical Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit
Output Power	Po	1	-	3	mW
Threshold Current	Ith	-	20	30	mA
Operating Current	If	-	50	60	mA
Operating Voltage	Vf	-	3.5	4.0	V
Monitor Current	Im	-	-	500	uA
Cent Wavelength	λc	405	-	415	nm
Spectral Width (RMS)	Δλ	-	2	3	nm
Spectral Shift	Δλ/ΔT	-	-	0.2	nm/°C
Fiber	SM (4um or 9um), MM, etc.

445nm Pigtailed Components

(If customers would like to know more about the details, please click here to download the following PDFfile.)

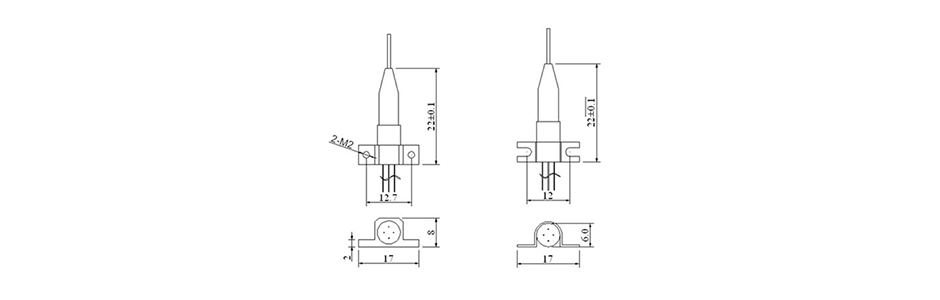

Drawing

635nm Pigtailed Components

(If customers would like to know more about the details, please click here to download the following PDFfile.)

Optical & Electrical Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit
Output Power	Po	1	-	20	mW
Threshold Current	Ith	-	25	30	mA
Operating Current	If	-	40	140	mA
Operating Voltage	Vf	-	2.3	3.0	V
Monitor Current	Im	-	-	500	uA
Cent Wavelength	λc	635	-	645	nm
Spectral Width (RMS)	Δλ	-	2	3	nm
Spectral Shift	Δλ/ΔT	-	-	0.2	nm/°C
Fiber	SM (4um or 9um), MM, etc.

650nm Pigtailed Components

(If customers would like to know more about the details, please click here to download the following  PDF file.)

Optical & Electrical Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit
Output Power	Po	1	-	20	mW
Threshold Current	Ith	-	15	20	mA
Operating Current	If	-	30	140	mA
Operating Voltage	Vf	-	2.3	3.0	V
Monitor Current	Im	-	-	500	uA
Cent Wavelength	λc	650	-	660	nm
Spectral Width (RMS)	Δλ	-	2	3	nm
Spectral Shift	Δλ/ΔT	-	-	0.2	nm/°C
Fiber	SM (4um or 9um), MM, etc.

Our company is a professional 405nm-980nm red visible light laser diode modules manufacturer and supplier in China. Our products include DFB pigtailed laser diode device, butterfly fiber coupled laser diodes, InGaAs coaxial plug in diode laser modules, and more.
