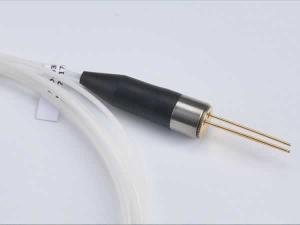

FP Pulsed Diode Laser

The FP pulsed diode laser (for OTDR system) can operate either in the pulsed mode or DC mode. It has the advantages of low threshold current, great output efficiency, and high current-carrying capacity. This series of product can be supplied with the optional multi-mode fiber-optic output. It is mainly used for the OTDR system as well as Raman backscattering based communication and test system.

1310nm Pulse Laser Diode For OTDR

(If customers would like to know more about the details, please click here to download the following 20-50MW 60-80MW file.)

Package Outline

1490nm Pulsed Laser Module for OTDR

(If customers would like to know more about the details, please click here to download the following PDF file.)

Optical & Electrical Characteristics
Parameter Symbol Min. Typ. Max. Unit Notes
Forward Voltage VFP 3.5 V IFP = 400 mA, PW = 10 μs, Duty = 1%
Threshold Current Ith 20 35 mA
Optical Output Power From Fiber Pf 40 60 mW IFP =400 mA, PW = 10 μs, Duty = 1%
Center Wavelength λc 1470 1490 1510 nm IFP = 400 mA, PW = 10 μs, Duty = 1%
Spectral Width σ 4 nm RMS (−3 dB)
Rise Time tr 0.5 2.0 ns 10-90%
Fall Time tf 0.5 2.0 ns 90-10%
Monitor Current Im 0.05 2 mA VRM = 5V

1550nm Pulse Laser Modules for OTDR

(If customers would like to know more about the details, please click here to download the following 20-40MW 60MW 80MW file.)

Optical & Electrical Characteristics
Parameter Symbol Min. Typ. Max. Unit Notes
Forward Voltage VFP 3.5 V IFP = 450 mA, PW = 10 μs, Duty = 1%
Threshold Current Ith 20 35 mA
Optical Output Power From SM Fiber Pf 60 mW IFP =450 mA, PW = 10 μs, Duty = 1%
Center Wavelength λc 1530 1550 1570 nm PW = 10 μs, Duty = 1%
Spectral Width σ 4 nm RMS (−3 dB)
Rise Time tr 0.5 2.0 ns 10-90%
Fall Time tf 0.5 2.0 ns 90-10%
Monitor Current Im 0.05 2 mA VRM = 5V

1625nm Pulse Laser Modules for OTDR

(If customers would like to know more about the details, please click here to download the following PDF file.)

Our 1625nm pulse laser modules for OTDR is equipped with high power FP chip with low threshold current and high-efficiency output. Capable of affording high current, the pulsed laser module can operate in dual mode, pulse and direct current. The multi-mode fiber is optional. This laser diode is generally used in the communication and testing system employing OTDR and Raman light reflection principle.

Optical & Electrical Characteristics
Parameter Symbol Min. Typ. Max. Unit Notes
Forward Voltage VFP 3.0 V IFP = 400 mA, PW = 10 μs, Duty = 1%
Threshold Current Ith 20 35 mA
Optical Output Power From Fiber Pf 40 mW IFP =400 mA, PW = 10 μs, Duty = 1%
Center Wavelength λc 1620 1625 1630 nm IFP =400 mA, PW = 10 μs, Duty = 1%
Spectral Width σ 4 nm RMS (−3 dB)
Rise Time tr 0.5 2.0 ns 10-90%
Fall Time tf 0.5 2.0 ns 90-10%
Monitor Current Im 0.05 2 mA VRM =5 V

30MW 1650nm Pulses Laser Diode Module For OTDR

(If customers would like to know more about the details, please click here to download the following PDF file.)

Optical & Electrical Characteristics
Parameter Symbol Min. Typ. Max. Unit Notes
Forward Voltage VFP 3.0 V IFP = 400 mA, PW = 10 μs, Duty = 1%
Threshold Current Ith 20 35 mA
Optical Output Power From Fiber Pf 30 mW IFP =400 mA, PW = 10 μs, Duty = 1%
Center Wavelength λC 1645 1650 1655 nm IFP = 400 mA, PW = 10 μs, Duty = 1%
Spectral Width σ 4 nm RMS (−3 dB)
Rise Time tr 0.5 2.0 ns 10-90%
Fall Time tf 0.5 2.0 ns 90-10%
Monitor Current Im 0.05 2 mA VRM =5 V

As an experienced FP pulsed diode laser (for OTDR system) manufacturer and supplier in China, our company also offers 8-10mw 1653.5nm butterfly pigtailed laser modules for gas detection, butterfly fiber coupled laser diodes, Pin TIA receiver, and more.
